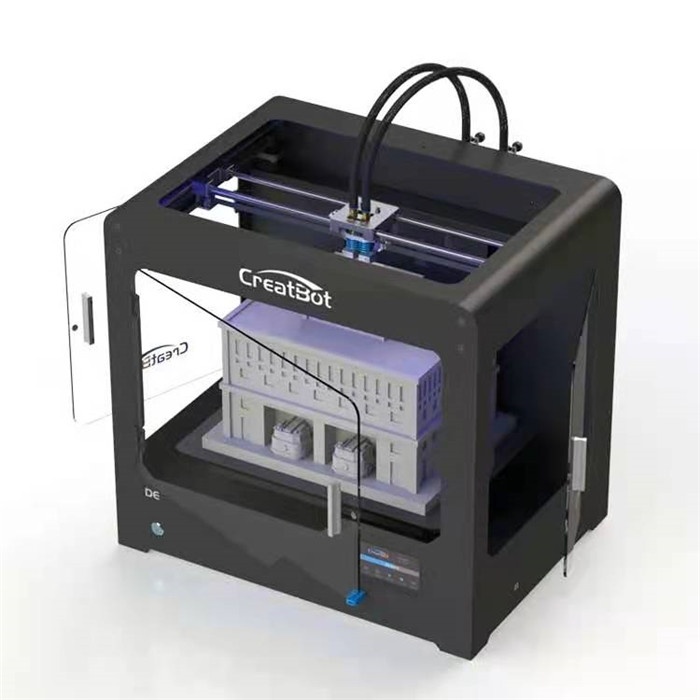

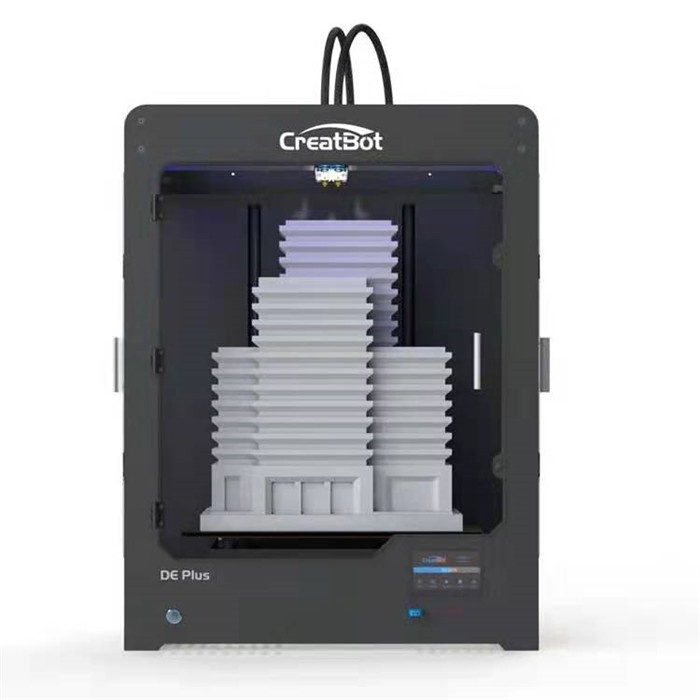

3D Printer CreatBot DE DE Plus
Printing
Print Technology:Fused Deposition Modeling

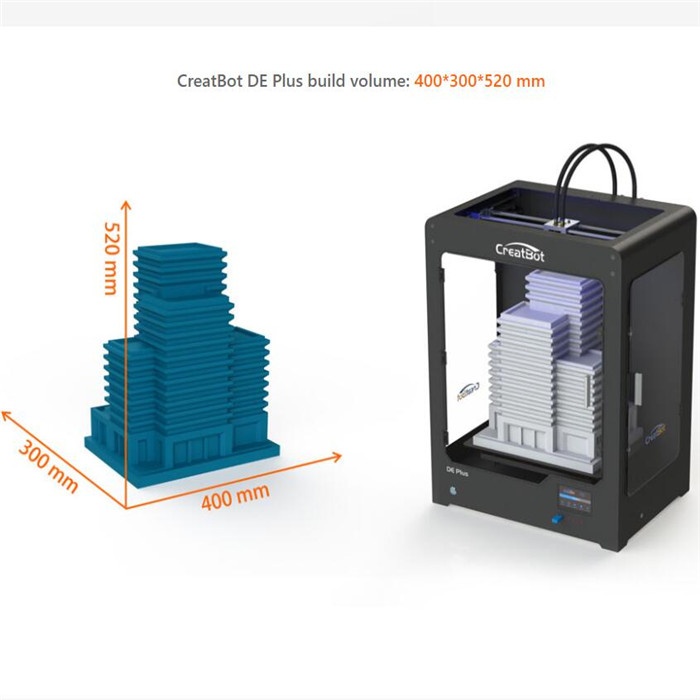

Build Volume:400*300*300 mm (DE)
400*300*520 mm (DE Plus)
* 3 nozzles build width：380mm
Number of Nozzles:Double (Max.3)
Accuracy:0.05 mm
Layer Resolution:0.05 mm
Filament Diameter:1.75 mm (3.0/2.85 mm optional)
Filament Compatibility:PLA, ABS, Carbon Fiber, PETG, etc.
Nozzle Diameter:0.4 mm（0.3 0.5 0.6 0.8 1.0 mm）
Print File Type:STL, OBJ, AMF, Gcode
Temperature
Ambient Operating Temperature:15-32 ℃
Max. Nozzle Temperature:260 ℃
Max. Bed Temperature:100 ℃
Special Function
Outage Restored:Save data when power is off
Filament Detection:Pause printing when filament run out
Automatic Shut-down:Turn off the power automatically when printing is complete
Mechanical
Construction :Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
Build Plate:Glass Panel
Build Plate Leveling:Factory Leveled, Adjust Manually
Extruder: Geared motor (1:10 rate)
Stepper Motors:1.8°Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:12.7 μm
Z Positioning Precision:1.25 μm
Speed
Best Printing speed:45 mm/s
Max. Printing speed:200 mm/s
Electrical
Power Requirements:100V-110V or 200V-240V / 50-60Hz
(Depending on your country's default voltage)
Max. Power:360 W
Screen:4.3'' full color touch screen, multi-language
Control Chip:ATmega 2560
Storage Media:U Disk
Connectivity:USB
Software
Software Bundle:CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types:STL,OBJ,AMF
Operating Systems:Win7/8/10, MacOS
Size & Weight
Product Dimensions & Weight:590*430*560 mm 35 kg (DE)
590*430*780 mm 42 kg (DE Plus)
Packing Size & Weight:720*560*670 mm 45 kg (DE)
720*560*870 mm 55 kg (DE Plus)
