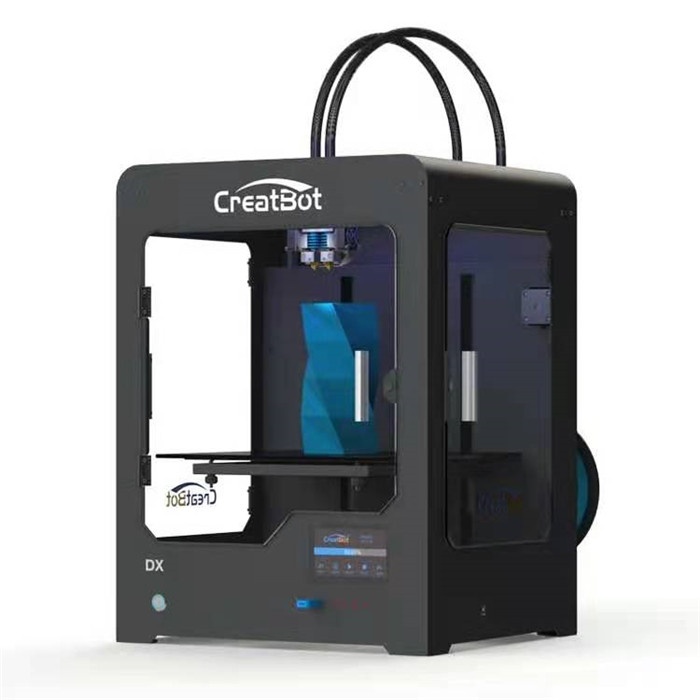

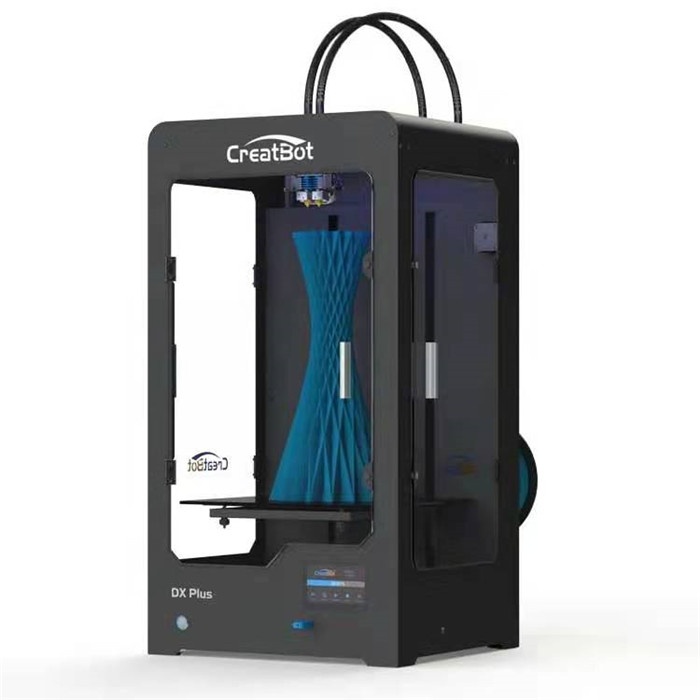

3D Printer CreatBot DX / DX Plus
Printing
Print Technology:Fused Deposition Modeling

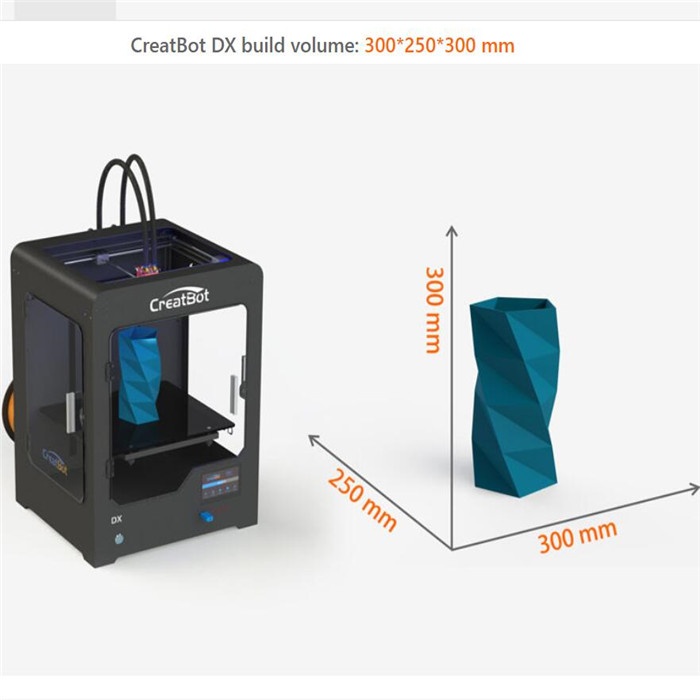

Build Volume:300*250*300 mm (DX)

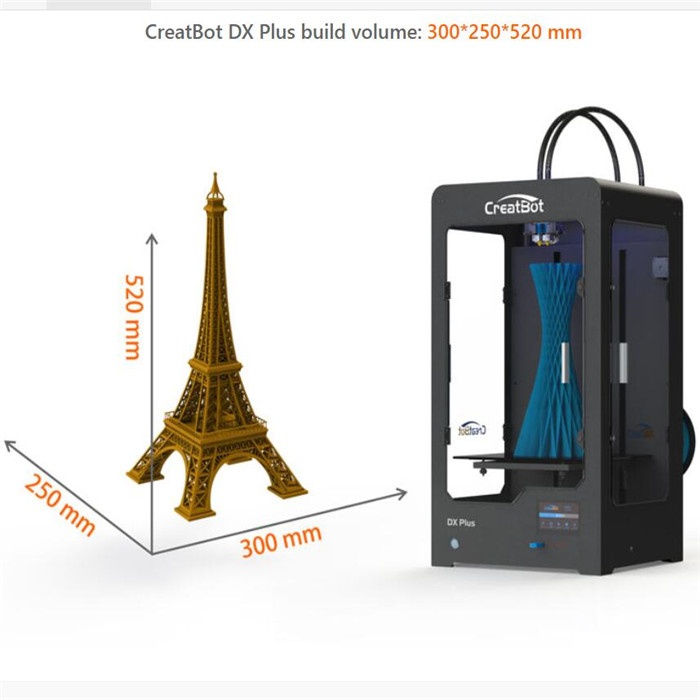

300*250*520mm (DX Plus)
* 3 nozzles build width：280mm
Number of Nozzles:Double (Max.3)
Accuracy:0.05 mm
Layer Resolution:0.05 mm
Filament Diameter:1.75 mm (3.0/2.85 mm optional)
Filament Compatibility:PLA, ABS, Carbon Fiber, PETG, etc.
Nozzle Diameter:0.4 mm（0.3 0.5 0.6 0.8 1.0 mm）
Print File Type:STL, OBJ, AMF, Gcode
Temperature
Ambient Operating Temperature:15-32 ℃
Max. Nozzle Temperature:260 ℃
Max. Bed Temperature:100 ℃
Electrical
Power Requirements:100V-110V or 200V-240V / 50-60Hz
(Depending on your country's default voltage)
Max. Power:360 W
Screen:4.3" Touch Screen with Multi-language
Control Chip:ATmega 2560
Storage Media:U Disk
Connectivity:USB
Speed
Best Printing speed:45 mm/s
Max. Printing speed:200 mm/s
Software
Software Bundle:CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types:STL,OBJ,AMF
Operating Systems:Win7/8/10, MacOS
Mechanical
Construction:Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
Build Plate:Glass Ceramic Panel
Build Plate Leveling:Factory Leveled, Adjust Manually
Extruder: Geared motor (1:10 rate)
Stepper Motors:1.8°Step Angle with 1/16 Micro-stepping
X Y Positioning Precision:12.7 μm
Z Positioning Precision:1.25 μm
Special Function
Outage Restored:Save data when power is off
Filament Detection:Pause printing when filament run out
Automatic Shut-down :Turn off the power automatically when printing is complete
Size & Weight
Product Dimensions & Weight:420*380*570 mm 25 kg (DX)
420*380*790 mm 30 kg (DX Plus)
Packing Size & Weight:550*500*670 mm 35 kg (DX)
550*500*870 mm 40 kg (DX Plus)
