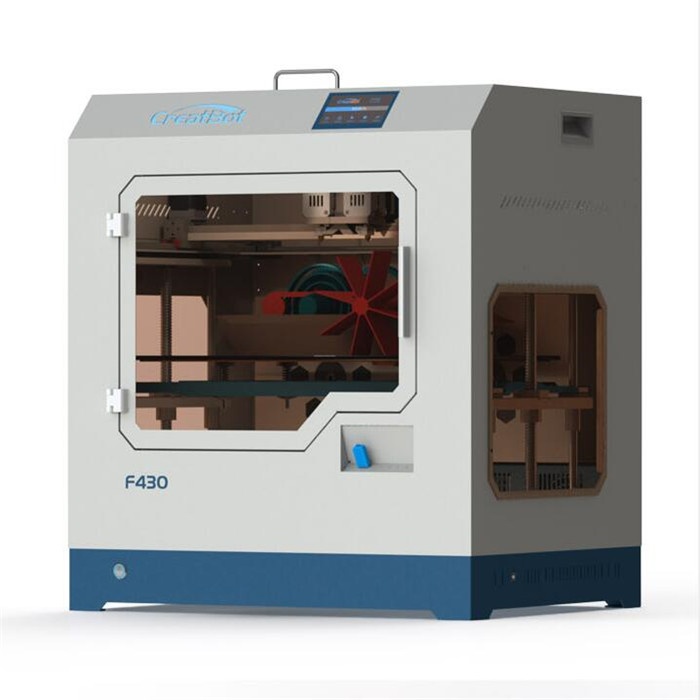

CreatBot F430 3D Printer

1. Large Print Size: 400x300x300 mm

2. Metal Full Closed Chamber

3. 400 degree Nozzle Temperature

4. Aluminum Print Bed

5. Large Color Touch Screen

6. Continue to Play, Filament Detection

7. Can Print: PLA, ABS, PVA, HIPS, PEEK, PVA, PA, Nylon, HIPS, Carbon Fiber, PETG, Flexible, TPU, TPE, etc.
TECHNICAL SPECS

Print Technology: Fused Deposition Modeling

Build Volume: 400*300*300mm (F430)

Number of Nozzles: Double

Resolution: 0.04mm

Layer Resolution: 0.02mm

Filament Diameter: 1.75mm

Filament Compatibility:  PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.

Nozzle Diameter:  0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)

TEMPERATURE

Max. Nozzle Temperature: 420°C

Max. Bed Temperature: 100°C

Max. Cabinet Temperature: 70°C

SPEED

Best Printing speed: 55mm/s

Max. Printing speed: 180mm/s

Max. traveling speed: 200mm/s

MECHANICAL

Construction: Power-Coated Steel, Aluminum Casting for Motion Components, POM

Build Plate: Glass Ceramic Panel

Build Plate Leveling: Automatic

Extruder: Directly Drive

X Y Positioning Precision: 12.7 Microns

Z Positioning Precision: 1.25 Microns

ELECTRICAL

Power Requirements: 100-240V, 50-60Hz

Max. Power: 300W

Screen: 4.3" Touch Screen

Connectivity: USB

SOFTWARE

Software Bundle: CreatWare Multi-language

Supported File Types: STL, OBJ, AMF

Operating Systems:  Windows (7,8,10)    Mac OS X

SPECIAL FUNCTION

Outage Restored: Sava data when power is off

Filament Detection: Pause printing when filament run out

Automatic Shut-down: Turn off the power automatically when printing is complete

SIZE & WEIGHT

Product Dimensions & Weight: 660*470*580mm 43Kg

Packing Size & Weight: 760*620*680mm 58Kg
